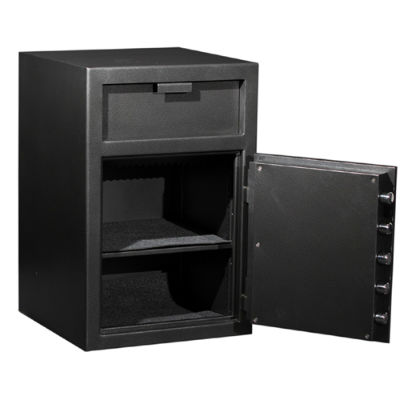

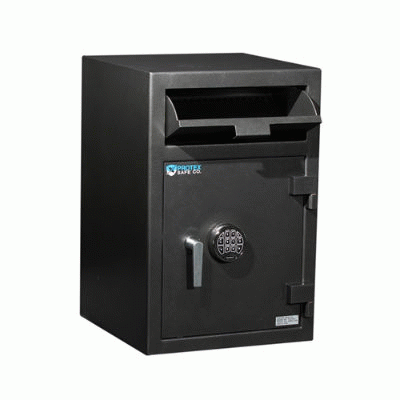

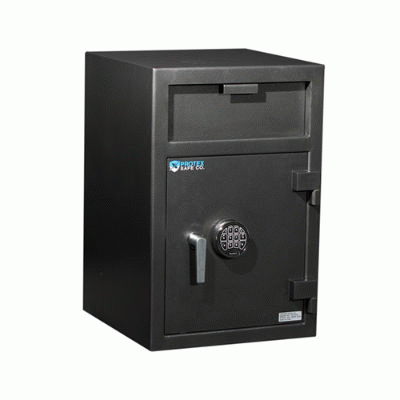

Protex FD-3020 Large Front Loading Depository Safe

Front-loading B-rated Drop Safe FD-3020 Description

The Protex Front-loading B-rated Drop Safe with electronic lock has a solid-steel body construction which is fully-welded (1/8” thick) and is a convenient large drop door with an anti-fish design.

• ¼” thick carburized hard-plate to resist drilling
• 3 chrome-plated heavy-duty bolts (1” diameter)
• 4 pre-drilled mounting holes on the bottom of safe (1/2” diameter)
  • Bolting hardware included for concrete floor anchoring
• Securam electronic digital lock
• Spring-loaded active re-locker
• Door is constructed from anti-pry solid steel plate (1/2” thick)
• Bolt detent spring will throw the bolts when door is shut
• Heavy-duty vault hinges
• Quality powder coat finish

Front-loading B-rated Drop Safe FD-3020 specifications

The Protex Front-loading B-rated Drop Safe with electronic lock has the following specifications:

• Dimensions (H x W x D):
• Exterior:                            30” x 20” x 20”
• Interior:                             18” x 19.75” x 17.5”
• Weight:                                  175 lbs.
• Capacity:                                3.6 cubic feet
• Door opening (W x H):          15.25” x 18”
• Drop opening (W x H):          15.75” x 4.25”
• Door thickness:                      2.5” (1/2” solid steel plate)
